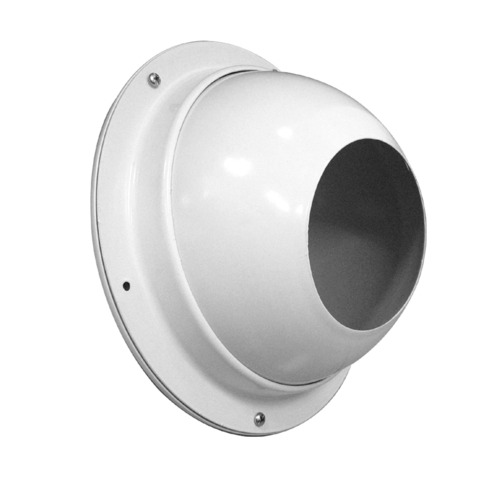

CX Ball Type Jet Diffuser

ASLI CX Ball Type Jet Diffusers are excellent for spot heating and cooling which provides ventilation to places where distribution of air via ceiling diffuser is not possible or not practical. The nozzle of the diffuser can be rotated in any direction off center. Kitchen, factories, stadiums or any places where the conditioned air needed to move from an inaccessible place to the work environment is easily handled by CX jet diffuser.

  • Economical.
  • Long throw capability.
  • High air flow capability.
  • Excellent for spot heating or cooling.
  • Suitable for exposed ductwork or surface mounted.
  • Suitable for ceiling or wall installation.
  • Air flow direction is adjustable.
  • Maximum rotation angle up to 45° in all direction.
  • Self rotation around nozzle center axis in 360°.
Material

CX-A
Nozzle : 1.0mm thickness aluminum sheet roll formed
Frame : 1.0mm thickness aluminum sheet roll formed

Surface Finish

Baked white powder coated as standard.

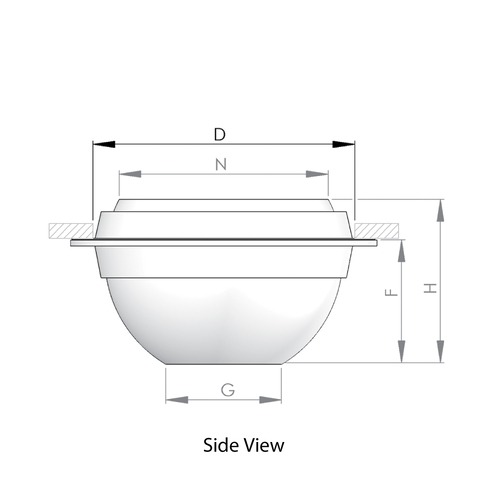

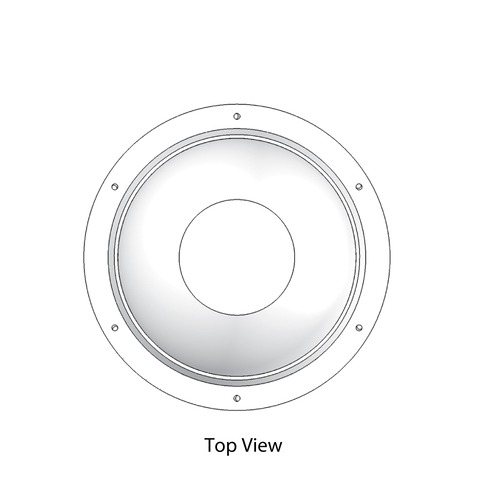

Measurements

(Standard Size Unit: mm)
125 / 150 / 200 / 250

Same Category

View All

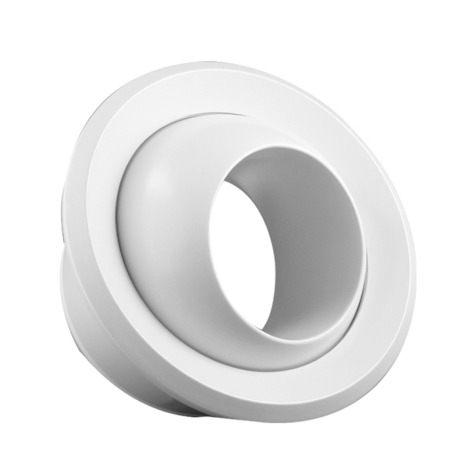

CB Ball Spout Jet Diffuser
CB Ball Spout Jet Diffuser

Jet Diffusers

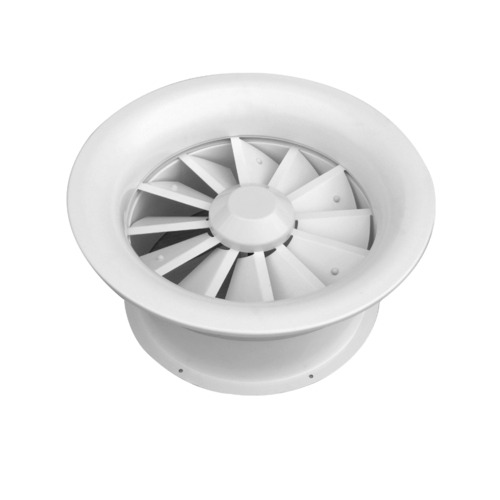

SWV Variable Swirl Jet Diffuser
SWV Variable Swirl Jet Diffuser

Jet Diffusers

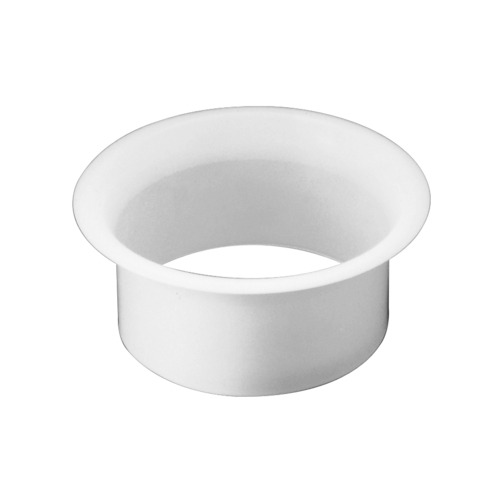

CF Jet Diffuser
CF Jet Diffuser

Jet Diffusers

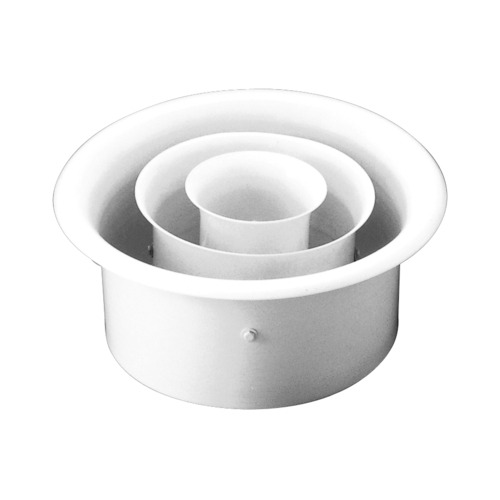

CK Jet Diffuser
CK Jet Diffuser

Jet Diffusers

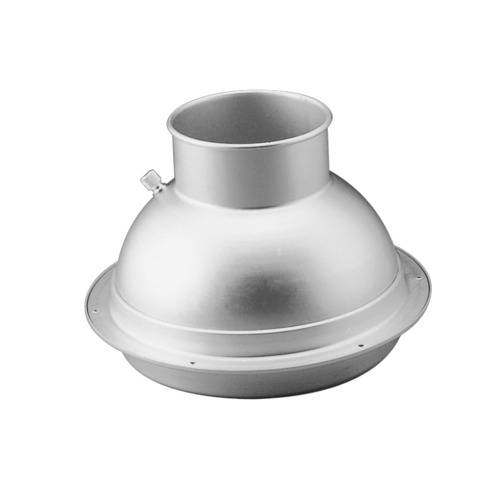

CL Ball Type Jet Diffuser
