CL Ball Type Jet Diffuser
CL Ball Type Jet Diffuser - Image 1
CL Ball Type Jet Diffuser - Image 2
CL Ball Type Jet Diffuser - Image 3

CL Ball Type Jet Diffuser

ASLI CL Ball Type Jet Diffusers are excellent for spot heating and cooling which provides ventilation to places where distribution of air via ceiling diffuser is not possible or not practical. The nozzle of the diffuser can be rotated in any direction off center. The air volume is adjustable by turning a knob on the nozzle. No special tools or techniques are required. Kitchen, factories, stadiums or any places where the conditioned air needed to move from an inaccessible place to the work environment is easily handled by ASLI CL jet diffuser. For industrial applications, air showers with numerous ASLI CL jet diffusers is an effective way to eliminate contaminants.

  • Economical.
  • Long throw capability.
  • High air flow capability.
  • Excellent for spot heating or cooling.
  • Suitable for exposed ductwork or surface mounted.
  • Suitable for ceiling or wall installation.
  • Air flow volume is adjustable.
  • Air flow direction is adjustable.
  • Maximum rotation angle up to 45° in all direction.
  • Self rotation around nozzle center axis in 360°.
Material

CL-A
Nozzle : 1.0mm thickness aluminium sheet rool formed
Frame : 1.0mm thickness aluminium sheet rool formed
Curved blade : 1.0mm thickness aluminium sheet rool formed

Surface Finish

Baked white powder coated as standard.

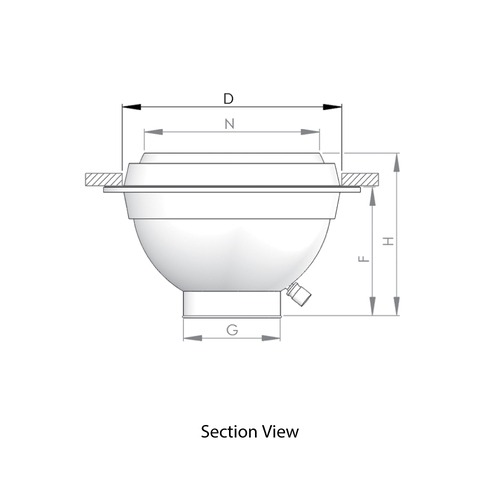

Measurements

(Standard Size Unit: mm)
125 / 150 / 200 / 250
