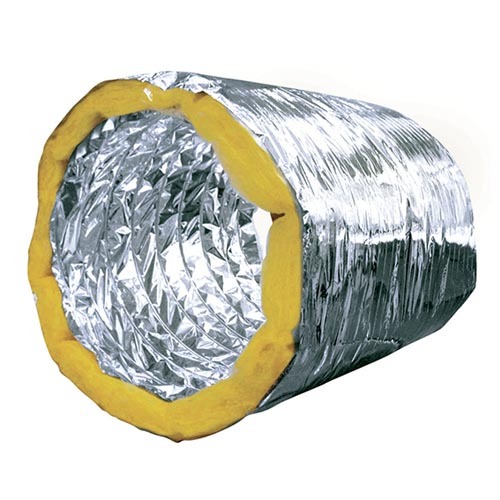

SHL-AFP Insulated Flexible Air Duct

SHL-AFP Insulated Flexible Air Duct

The ASLI Non-Insulated Flexible Air Duct (SHL-AF) is constructed of a reinforce metalized polyester film laminate jacket. This product is permanently bonded to a corrision resistant coated spring steel wire helix.

Duct Size: Ø 100mm ~ 400mm
Velocity: 28m/s (5500fpm)
Temperature Rating: -30˚C ~ 150˚C
Pressure Rating:
250mm W.G. (+ve)
25mm W.G. (-ve)
Standard Length: 10m
Steel Wire: Ø 1.0mm ~ 1.2mm
Metalized Polyester Film: 0.012mm
Fiberglass:
25mm & 16kg/m³
25mm & 24kg/m³
25mm & 32kg/m³
50mm & 16kg/m³
50mm & 24kg/m³
50mm & 32kg/m³
