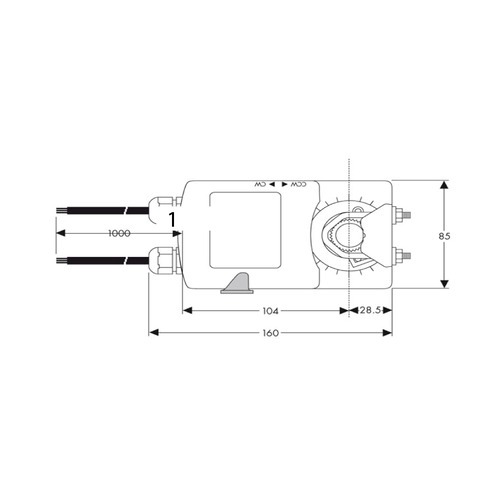

NACA 10Nm 2-Point & 3-Point On-Off Control Actuator - Image 2

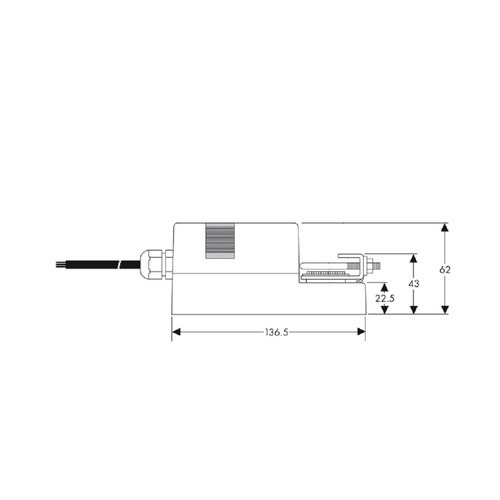

NACA 10Nm 2-Point & 3-Point On-Off Control Actuator - Image 3
NACA 10Nm 2-Point & 3-Point On-Off Control Actuator
NACA 10Nm 2-Point & 3-Point On-Off Control Actuator - Image 1
NACA 10Nm 2-Point & 3-Point On-Off Control Actuator - Image 2
NACA 10Nm 2-Point & 3-Point On-Off Control Actuator - Image 3

NACA 10Nm 2-Point & 3-Point On-Off Control Actuator

ASLI damper actuators are are especially designed and produced for applications in the HVAC systems with latest Switzerland technology. It has been developed to operate and position air dampers of different sizes.

  • Torque 10 Nm
  • Damper neck size 1.5m²
  • Power supply AC/DC 24 V and AC 230 V
  • Control 2 Point and 3 Point
  • 1 adjustable auxiliary switch (SPDT) when requested
  • Shaft dimensions: Ø 10 to 20 mm round / 5 to 14 mm square
  • Minimum shaft length 45 mm
  • Selectable direction of rotation
  • Adjustable angle of rotation
  • Actuator with 1m cable connection
Material

Torque: 10 Nm | Running Time: 100…120 sec

Power Supply: AC/DC 24V ±10%

  • No auxiliary switch → Model: NACA 1-10
  • With 1 × SPDT switch → Model: NACA 1-10 S1

Power Supply: AC 230V ±10%

  • No auxiliary switch → Model: NACA 2-10
  • With 1 × SPDT switch → Model: NACA 2-10 S1
