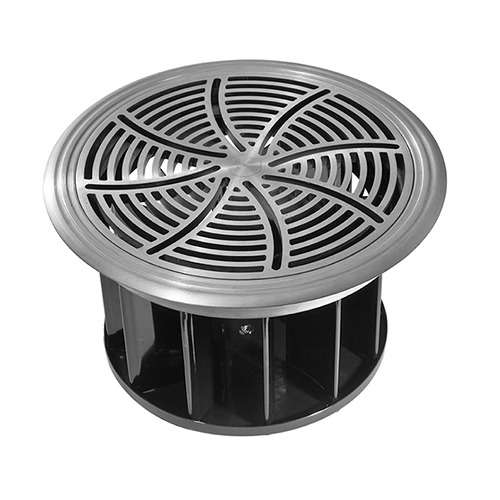

ASLI FLD Round Floor Diffusers are specially designed for use in raised floor air distribution systems, where the floor cavity is used as a pressurized supply air plenum. FLD produces a high velocity swirl air pattern with the guidance of guide vane in the basket. Maximum comfort level could be achieved by producing high induction rates of room air with the design of FLD. Aesthetically appealing FLD is accessable by removing the diffuser core to remove the dust in the dust tray.

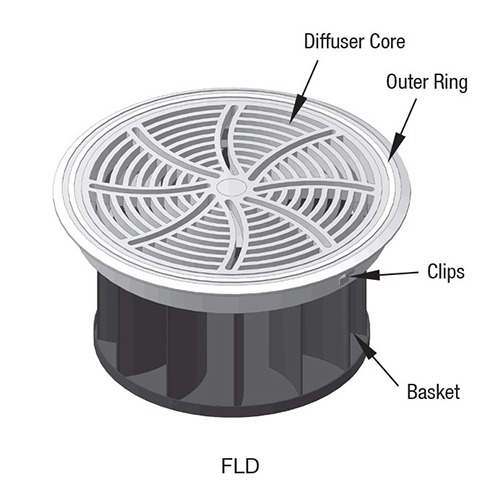

Diffuser core : Aluminum die casting
Outer ring : Aluminum die casting
Housing : 0.7mm thickness galvanized steel
Basket : 0.7mm thickness galvanized steel
Plenum Box Internal Insulation : Fiber glass, 25mm, 32kg/m³
Blade : 1.0mm thickness Aluminum extrusion
Diffuser Core : Mill Finished
Outer ring : Mill Finished
Housing : Powder coated
Basket : Powder coated
(Standard Size Unit: mm)
FLD-S : ø200, ø250
FLD-C : ø250
